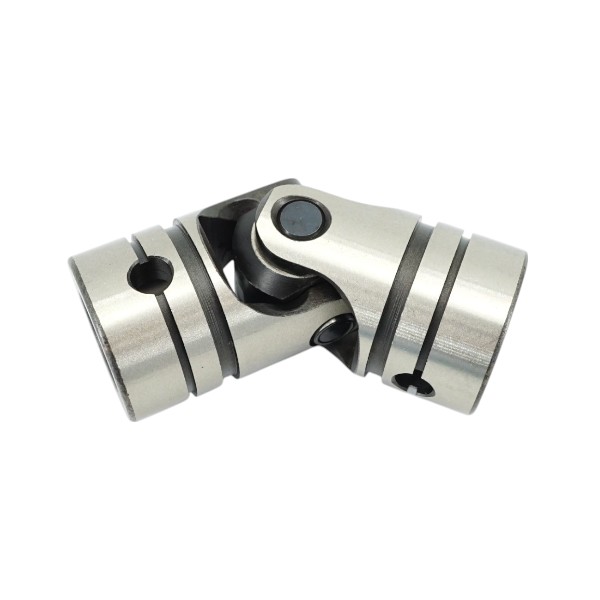

SJ type,precision single universal joint

Pin and block universal joint

Features: • Made from SCM415 material and treated with carburizing,; significantly increasing the product's toughness and; durability.; • Precision grinding of both the inner and outer diameters; ensures minimal gaps and an excellent fit.; • Custom products can be precision ground to achieve near; zero gap precision, reducing friction on contact surfaces to; the minimum, thereby extending the service life.; • Dust covers available (for SJ-25 and below specifications); • Inner Diameter: Ø5 ~ Ø50; • Material: SCM415; • Swing Angle: 30°

Add Inquiry (0)

Application：

Automatic machines, specialized machinery, printing machinery, paper machinery, blowers, rolling mills, straightening machines, slitting machines, forming machines, conveyors, wire drawing, valve control, and other industrial machinery

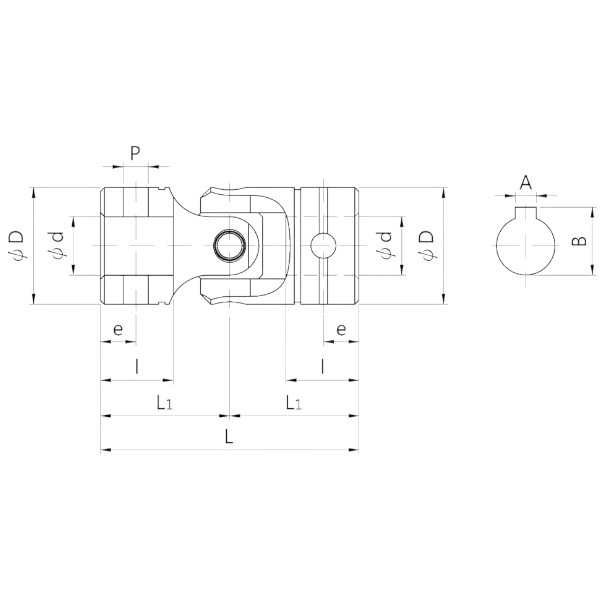

Model	Allowable Torque (kg/m)	Breaking Torque (kg/m)	Tensile Breaking Load (kg)	Min Length (Min)	Max Length (Max)	Stroke (mm)	Bore Φd	Outer Dia. ΦD	Yoke Length L1	Shaft Insertion I	Sleeve Length E	Key AxB
SJ-05	2800	0.5	1.2	5	10	30	15	9	4.5	2	/	/
SJ-06	2500	0.8	1.6	6	12	31	15.5	9	4.5	3	18.5	/
SJ-08	2200	1.5	3.2	8	15	36	18	10	5	3.5	22	3x9.5
SJ-10	2000	3	7.5	10	19	42	21	12	6	4.5	25.5	4x11.8
SJ-12	1800	4.5	12	12	23	52	26	15	7.5	5	31	4x13.8
SJ-14	1600	7	17	14	26	59	29.5	17	8.5	5.8	35.5	5x16.3
SJ-16	1400	10	25	16	30	74	37	22	11	6.5	43.5	5x18.3
SJ-18	1200	13	32	18	33	81	40.5	23.5	11.75	7	48	6x20.8
SJ-20	1000	18	45	20	36	87	43.5	25	12.5	8	52	6x22.8
SJ-22	900	24	60	22	40	94	47	27	13.5	9	56	8x25.3
SJ-25	800	30	80	25	44	105	52.5	30	15	10	63	8x28.3
SJ-30	700	45	115	30	51	122	61	35	17.5	11.5	73	8x33.3
SJ-35	600	55	180	35	59	140	70	40	20	13	84	10x38.3
SJ-40	500	85	250	40	67	157	78.5	45	22.5	14.5	94	12x43.3
SJ-45	400	125	350	45	75	176	88	50	25	16	106	14x48.8
SJ-50	300	180	490	50	83	191	95.5	55	27.5	17.5	113	14x53.8
